Adding a second monitor to your Windows setup can significantly boost productivity. However, if Windows 10 /11 struggles to detect the second monitor, it can be frustrating. But it’s not uncommon to encounter issues where the computer fails to detect the additional display. In this comprehensive guide, we’ll walk you through various troubleshooting steps to ensure your secondary monitor is recognized and functioning seamlessly.
Hardware Troubleshooting
When the second monitor isn’t detected, it’s essential to rule out hardware issues. Follow these steps:
| Steps | Actions |
|---|---|
| 1 | Confirm the display is powered on and connected to a power source. |
| 2 | Turn off and on your computer to refresh the connection. |
| 3 | Check the monitor’s built-in controls and ensure the correct input port is selected. |
| 4 | Examine the signal cable connection between the display and the graphics card. |
| 5 | Disconnect and reconnect the signal cable after one minute. |
| 6 | Change the signal cable to rule out cable issues. |
| 7 | Verify you’re using the correct cable version (DisplayPort, HDMI). |
| 8 | Try different ports on both the monitor and graphics card. |
| 9 | Connect the monitor to another computer to identify display or computer-specific problems. |
| 10 | Disconnect peripherals to eliminate conflicts with the display. |
| 11 | If using a dock station, connect the monitor directly to the computer. |
| 12 | Update the external monitor firmware for bug fixes (if applicable). |
If the issue persists, proceed to software-related troubleshooting.

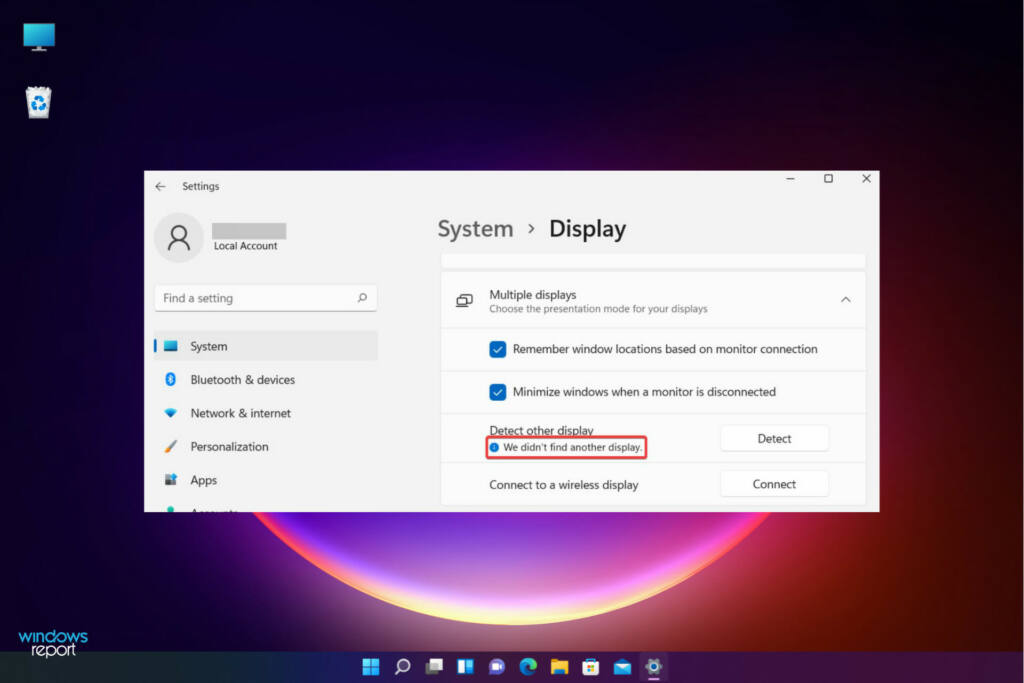

1. Force Detect Displays
Automatic display detection usually works smoothly, but you can explicitly instruct Windows to look for new attached displays. This is particularly useful for older connection standards like VGA or DVI. Follow these steps:
- Right-click on the desktop and select “Display Settings.”
- In the “Display Settings” window, click “Detect” to identify any available monitors.
Tip: For Windows 10 users, find this window under Start > Settings > Display.
| Step | Action |
|---|---|
| 1 | Right-click on desktop |
| 2 | Select “Display Settings” |
| 3 | Click “Detect” |
2. Check That Everything Has Power
Ensure all components are connected to a power source and turned on. If using intermediate devices like USB docks or HDMI repeaters, connect the display directly to identify potential issues.
| Step | Action |
|---|---|
| 1 | Confirm power to all devices |
| 2 | Connect display without intermediate devices |
3. Look for Misplaced Connections
Double-check that the monitor is plugged into the correct display output. If using a discrete graphics card, connect to its output, not the motherboard.
| Step | Action |
|---|---|
| 1 | Verify correct display output |
| 2 | If unsure, try every connector port |
4. Confirm the Display Is Set to the Right Input
Ensure the monitor is set to the correct input. Refer to the manual for guidance on changing sources or manually move cables to different inputs.
| Step | Action |
|---|---|
| 1 | Check monitor input settings |
| 2 | Switch to the correct source |
5. Reboot the Computer
After verifying all connections, perform a reboot. Some computers may not detect a monitor if it’s plugged in after booting up.
| Step | Action |
|---|---|
| 1 | Reboot the computer |
| 2 | Ensure all connections are in place |
6. Use a Different Port, Cable, or Connection Type
Try alternative ports, cables, or connection types between your graphics card and display.
| Step | Action |
|---|---|
| 1 | Experiment with different ports or cables |
| 2 | Consider trying an alternative connection type |
7. Use a USB Adapter
Employ a USB to HDMI or USB to DisplayPort adapter to bypass GPU outputs. Ideal for non-intensive tasks like presentations or multitasking.
| Step | Action |
|---|---|
| 1 | Use a USB adapter |
| 2 | Consider for non-intensive tasks |
8. Update Your Display Drivers
Outdated or buggy display drivers can hinder multi-display support. Visit your graphics card manufacturer’s website for the latest driver version.
| Step | Action |
|---|---|
| 1 | Update graphics card drivers |
| 2 | Check for pending Windows updates |
Settings Troubleshooting
Once hardware issues are ruled out, explore Settings for solutions:

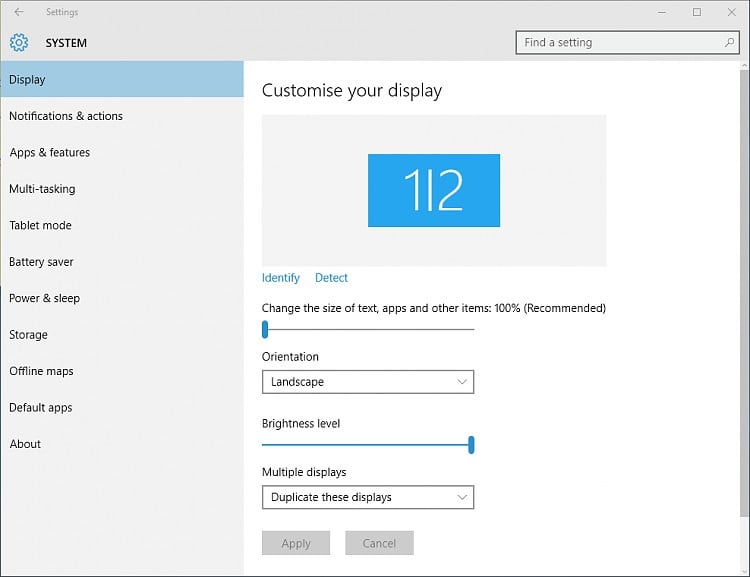

- Force Second Display Detection
- Open Settings.
- Navigate to System > Display.
- Under “Multiple displays,” click “Detect” to connect to the external monitor.
- Optionally, click “Detect” in the “Rearrange your displays” section.
- Connect Wireless External Display
- Open Settings.
- Go to Devices > Bluetooth & other devices.
- Turn on Bluetooth.
- Click “Add Bluetooth or other device.”
- Select “Wireless display or dock” and follow on-screen instructions.
Graphics Driver Troubleshooting
Outdated or corrupted graphics drivers can hinder automatic second monitor detection. Follow these steps:
- Update Graphics Driver
- Open Settings.
- Navigate to Update & Security > Windows Update.
- Click “View optional updates” and select Driver updates.
- Check and install the graphics driver.

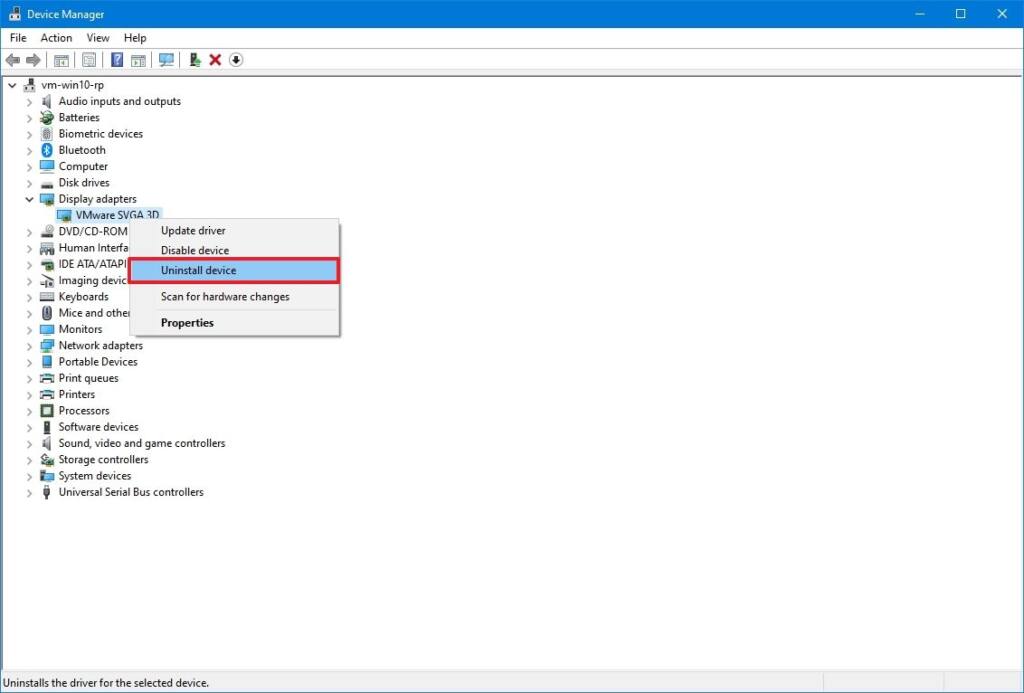

- Reinstall Graphics Driver
- Open Device Manager.
- Expand Display adapters, right-click the adapter, and choose Uninstall device.
- Restart the computer to auto-reinstall the driver.
- Manually scan for changes if needed.
- Rollback Graphics Driver
- In Device Manager, under Display adapters, select Properties.
- Go to the Driver tab and click “Roll Back Driver.”
- Confirm and restart the device.
- Update Graphics Driver with Manufacturer Control Panel
- Use manufacturer tools like Intel Driver & Support Assistant, NVIDIA GeForce Experience, or AMD Radeon Software Adrenalin Edition.
- Alternatively, download from the manufacturer’s support website.
- Check Manufacturer and Driver Version
- Open System Information.
- Under Components, select Display to confirm Adapter Type and Driver Version.
Frequently Asked Questions
- Q: Why is my second monitor not being detected on Windows 10?
- A: The issue could be hardware-related or involve outdated or corrupted graphics drivers. Follow the troubleshooting steps outlined in this guide.
- Q: How can I force Windows 10 to detect my second monitor?
- A: Open Settings, go to System > Display, and under “Multiple displays,” click “Detect.” Additionally, check the “Rearrange your displays” section.
- Q: Can I connect a wireless external display to Windows 10?
- A: Yes, enable Bluetooth, go to Settings > Devices > Bluetooth & other devices, click “Add Bluetooth or other device,” and select “Wireless display or dock.”
- Q: How do I update graphics drivers on Windows 10?
- A: Open Settings, go to Update & Security > Windows Update, click “View optional updates,” select Driver updates, and install the graphics driver.
- Q: What if rolling back the graphics driver doesn’t resolve the issue?
- A: Consider updating the driver using the manufacturer’s control panel or downloading the latest version from their support website.
- Q: Should I use the graphics driver from Windows Update or the manufacturer?
- A: Branded computers may benefit from using the driver provided by the device manufacturer to avoid compatibility issues.
- Q: How can I check my graphics card vendor and driver version on Windows 10?
- A: Open System Information, expand Components, select Display, and confirm the Adapter Type and Driver Version.
- Q: Are there specific tools for updating graphics drivers from manufacturers?
- A: Yes, Intel Driver & Support Assistant, NVIDIA GeForce Experience, and AMD Radeon Software Adrenalin Edition are tools provided by manufacturers.
- Q: What if the external monitor is still not detected after updating the graphics driver?
- A: Ensure the monitor is functioning correctly, check cable connections, and consider testing the monitor on another computer to isolate the issue.
- Q: Can external monitor firmware updates fix detection issues?
- A: While uncommon, updating the external monitor firmware may address bugs and compatibility issues.
