What are the parts of the flashlight? A basic flashlight has four components, a battery, a bulb, a switch and a metal strip, that connects the other components together.

What is the function of a flash light? Flashlights are devices that provide illumination without the use of electricity. This strong beam of light can be easily controlled for specific tasks. These tools are necessary for countless environments and situations. Like most tools, flashlights are not a one size fits all for users.

What is the reflective part of a flashlight called? Reflector: At the front of the flashlight, situated around the light bulb, is a layer of plastic and aluminum, known as the reflector. This piece redirects the bulb’s rays into a steady beam. Lamp: The lamp is the light bulb the flashlight uses to emit light, typically a tungsten filament or an LED bulb.

What is the resistor in a flashlight? The resistor is like a tube that restricts the amount of current that can get through. This resistor minimizes the current that gets to your LED so we don’t give the LED too much current and destroy it.

What are the parts of the flashlight? – Additional Questions

How do I fix my LED flashlight?

Does flashlight reflect or refract?

A flashlight uses both reflection and refraction. The light reflects off the reflector (#4 in in the diagram) that is positioned around the lamp. The reflector re-routes the light rays from the lamp/light bulb, this causes a consistent beam of light which is the light you see when turning a flashlight on.

Does flashlight reflect light?

For example, a flashlight beam will reflect at the same incoming angle. The type of surface affects reflection. Shiny objects do not absorb or scatter wavelengths. Instead, the shiny surface reflects mirror-like images to the observer.

How does a flashlight focus light?

Traditional flashlights use an incandescent bulb powered by a battery to provide light. The current from the battery heats the filament wire inside the bulb, causing it to glow and give off light.

What is flashlight spill?

Typical modern flashlights with the usual flat lens and reflector produce a beam that’s concentrated at its brightest in the center, or “hotspot,” with a much larger and less intense surrounding ring called the “spill.” The transition area around the hotspot going into the spill is sometimes called the “corona.”

Why is it called a flashlight?

Hubert’s first portable flashlights were hand-made from crude paper and fiber tubes, with a bulb and a rough brass reflector. Because batteries were weak and bulbs primitive, flashlights of the era produced only a brief flash of light– thus the name.

How is a flashlight made?

How do you make a flashlight beam?

What is called beam of light?

The light traveling in any one direction in a straight line is called a ray of light. A group of light rays given out from a source is called a beam of light.

What are the three types of light beams?

Beams of Light can be of 3 types. They are parallel, convergent and divergent. Parallel: When Rays from a distant point source travel parallel to each other in a particular direction, it forms a parallel Light Beam.

What shape is a flashlight?

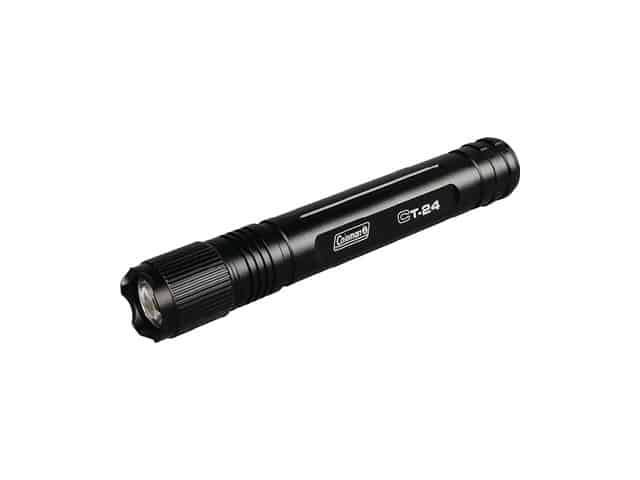

Many flashlights are cylindrical in design, with the lamp assembly attached to one end.

What makes a flashlight bright?

The more Lumens a flashlight puts out the brighter your flashlight’s beam will be. For example a flashlight that has an output of 1000 Lumens is going to be brighter and have a further beam distance than a flashlight with say 180 Lumens.

What are different types of flashlights?

Quicklist: Types of Flashlights
  • Incandescent Bulb.
  • Light Emitting Diode (LED)
  • High-Intensity Discharge (HID)
  • Pressurized Gas.
  • Solar-Powered.
  • Headlamp.
  • Lanterns.
  • Shake.

What is inside an LED flashlight?

It’s called solid-state lighting because unlike incandescent and fluorescent lighting technologies, there are no gases involved in LEDs. Instead, energy is passed through a semiconductor (usually a solid chemical element or compound that can conduct electricity), lighting up the LED light bulb.

What are the parts of an LED?

Typically an LED light contains an epoxy lens or case, a wire bond, a reflective cavity, a semiconductor wafer or diode, a lead frame with two leads, an anode and a cathode. The key element in an LED light is the semiconductor wafer or diode that is coated with impurities.

What are the parts of LED lamp?

In order to explain how an LED works we must explain the four main components of an LED lamp; the LED Chip, the Driver, the The LED chip emits lights the in the bulb. Heat Sink, and the Optic lens. The driver then regulates the input current. The Heat Sink draws the heat away from the LED Chip.

How do LED lights work?

An LED bulb produces light by passing the electric current through a semiconducting material—the diode—which then emits photons (light) through the principle of electroluminescence. Don’t let that big word scare you! It essentially means that a material (in this case, the diode) casts light when power is applied to it.

Do LEDs burn out?

Unlike incandescent light bulbs, LEDs don’t produce light using heat. This is part of what makes them so energy efficient. The downside is that their components can be sensitive to overheating, which can cause them to burn out prematurely.
